Sanitary Feed Through Fittings

Developed to Address the Needs of Pharmaceutical Research, Pilot Plants, and Various Industrial Applications

Place an Order
hero 1secton img (1)
  • icon-1

    Innovative Design

  • icon-2

    Critical Objectives Met

  • icon-3

    Versatile Applications

  • icon-4

    Compliance and Reliability

  • icon-5

    Flexible Solutions

section 5 img

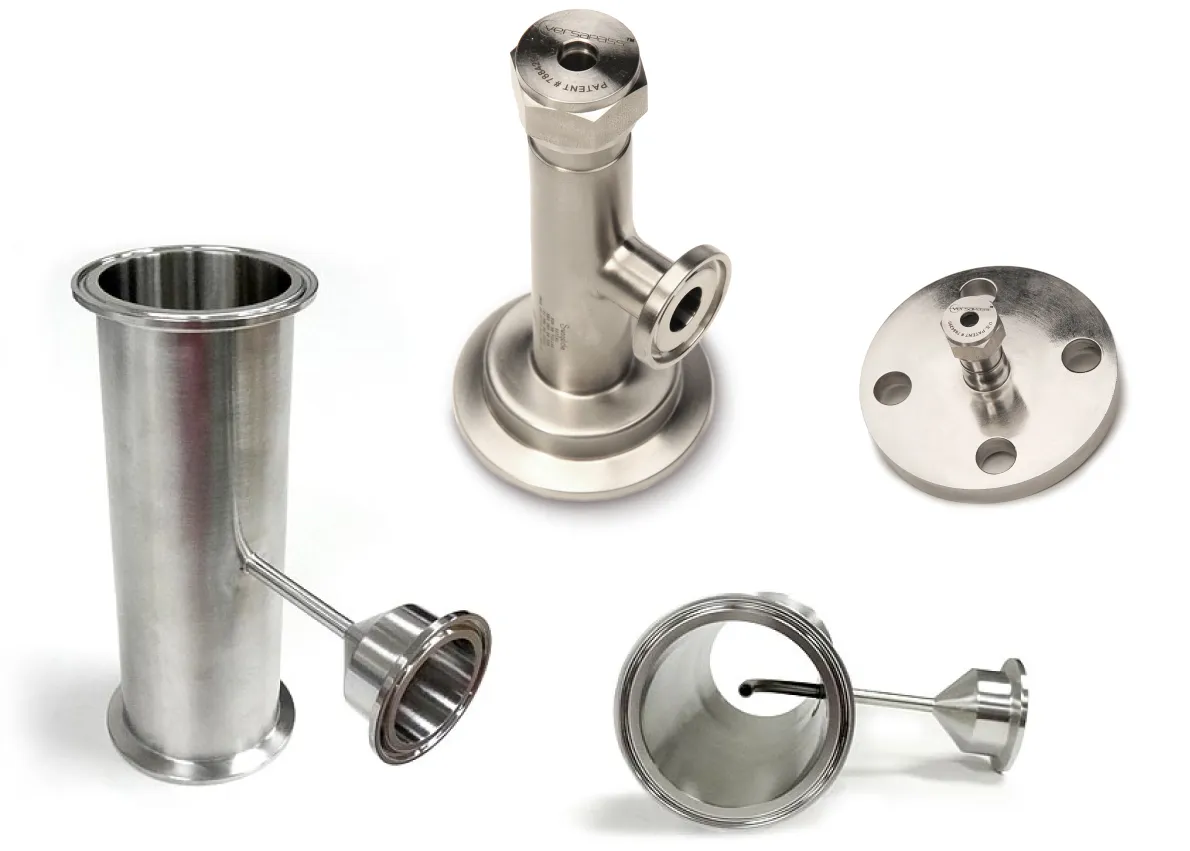

Versapass™ - a Unique Variable Positioning Sanitary Feed Through Fitting

Versapass™ offers a unique line of sanitary feed through fittings for clean, variable insertion of probes, dip tubes, and other tools into a sanitary fluid stream or reactor. The immersion point of these tools can be optimized as opposed to fixed or welded solutions while maintaining a leak-free connection.

Specifications for Probes and Dip Tubes

  • Clean and variable insertion of probes or dip tubes
  • Inert materials of construction, PFA and 316 stainless steel or Hastelloy
  • Performance rated; vacuum to 100 PSI ambient to 150 Celsius for CIP/SIP environments
2
1

Advanced Seal and Spring Mechanisms

  1. Live load springs compensate for wear, thermal expansion, and contraction.
  2. PFA packing seals and grips with repetitive cycle life without deforming probe or dip tube.
  3. The patented Seal Design, probe, or tube seal is flush at the point of immersion, and on the same plane as the process side of the fitting.
  4. The packing step sweeps away from the probe or tube for cleanliness, coupled with precision containment of the PFA seal for excellent thermal cycling and pressure rating performance.
