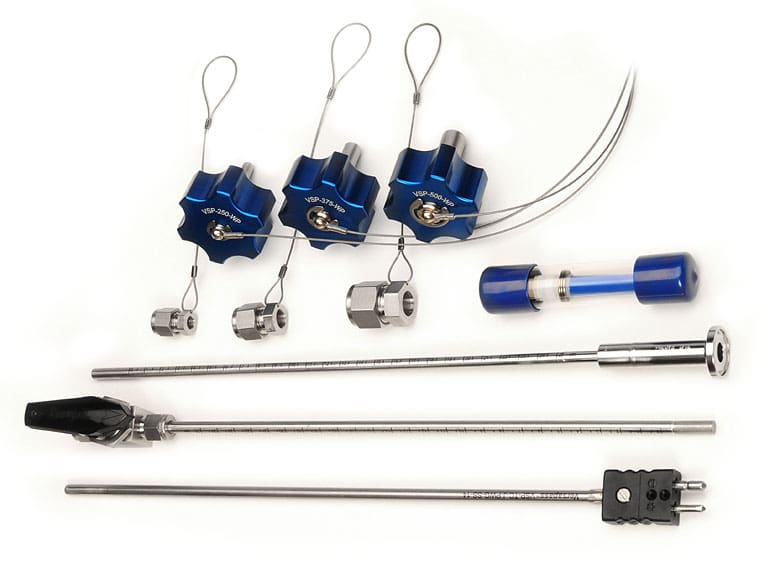

Accessories
Dip Tube/Probe Stop Collar
Uses TFE ferrules to grip a probe or dip tube to prevent probe movement should a Versapass™ nut be loosened. Comes with a lanyard and swage clip.
| Tube OD (inch) | Material | Part Number |
|---|---|---|
| .250 | 316 Stainless Steel | VSP-250-SC |
| .375 | 316 Stainless Steel | VSP-375-SC |
| .500 | 316 Stainless Steel | VSP-500-SC |

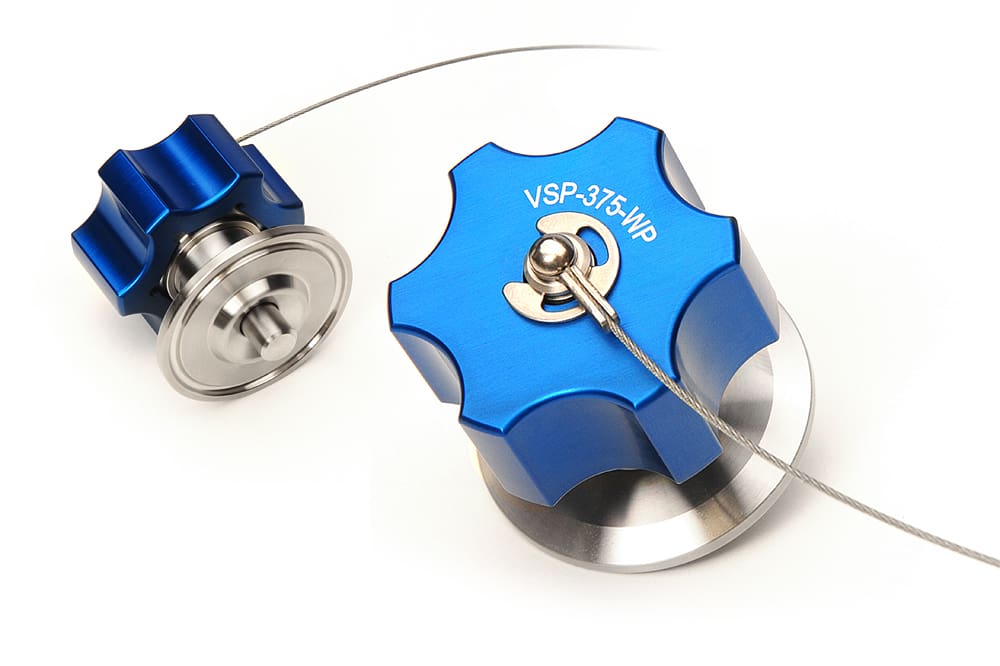

Wrench Plug
The handle has a built-in hex that fits over the nut and closes the Versapass™ fitting to the atmosphere when tightened clockwise. A lanyard is included to secure the wrench plug when not in use.
| VSP Port Diameter (inch) | Handle | Plug Material | Part Number |
|---|---|---|---|
| .250 | Anodized Aluminum | 316 Stainless Steel | VSP-250-WP |
| .375 | Anodized Aluminum | 316 Stainless Steel | VSP-375-WP |
| .500 | Anodized Aluminum | 316 Stainless Steel | VSP-500-WP |

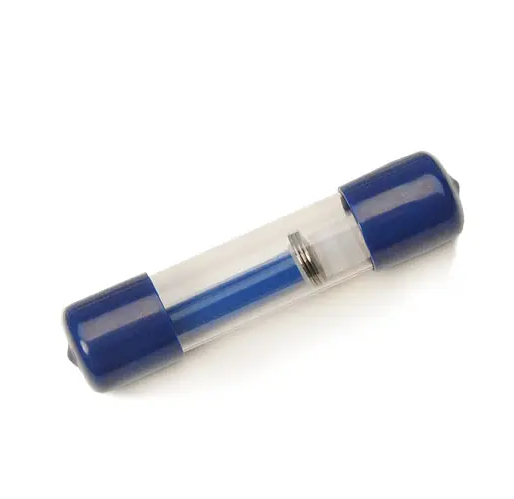

Seal Kit
Each seal kit contains 3 Belleville washers and a PFA packing seal.
| VSP Port Diameter (inch) | Live Load Springs | Packing | Part Number |
|---|---|---|---|
| .250 | 17-7PH | PFA | VSP-250-SK |
| .375 | 17-7PH | PFA | VSP-375-SK |
| .500 | 17-7PH | PFA | VSP-500-SK |

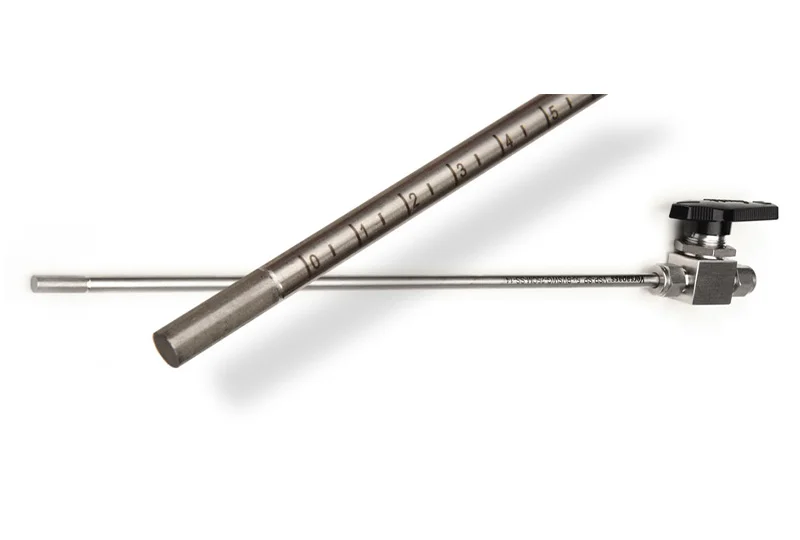

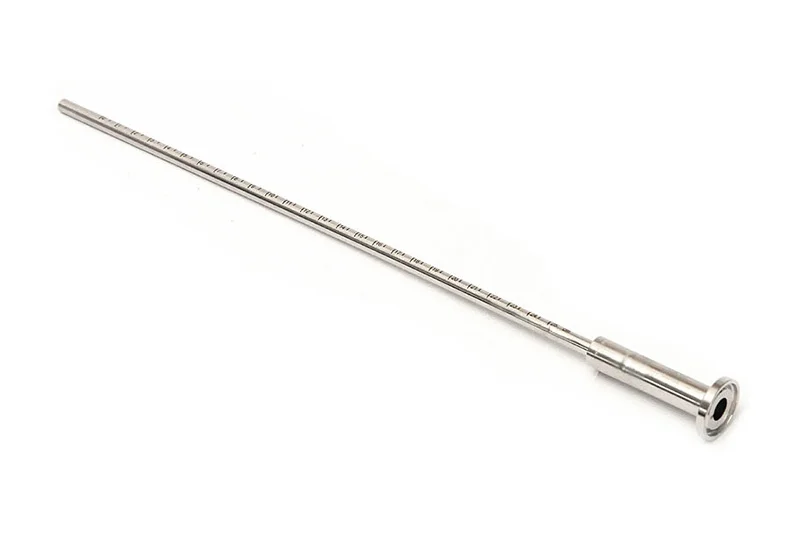

Custom Calibrated Probes and Dip Tubes
Calibrated probes and dip tubes are available for temperature measurement, sampling, additions, and sparging. Custom lengths are available.

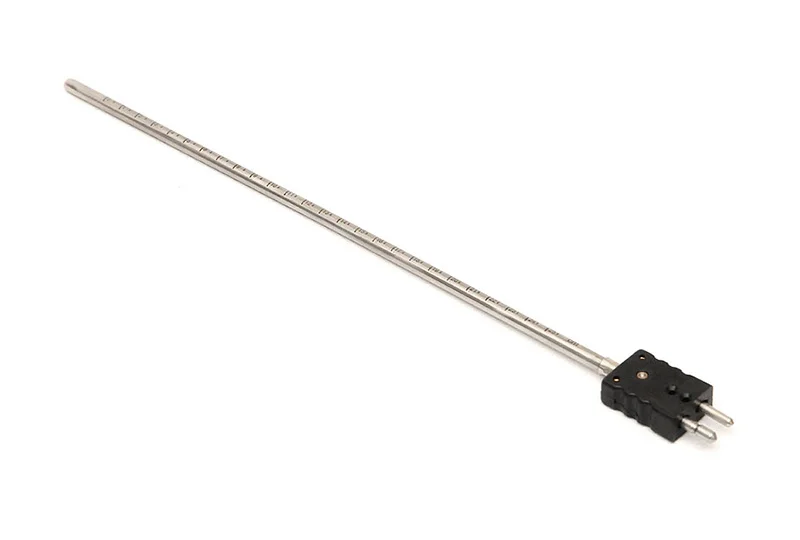

Thermocouple
